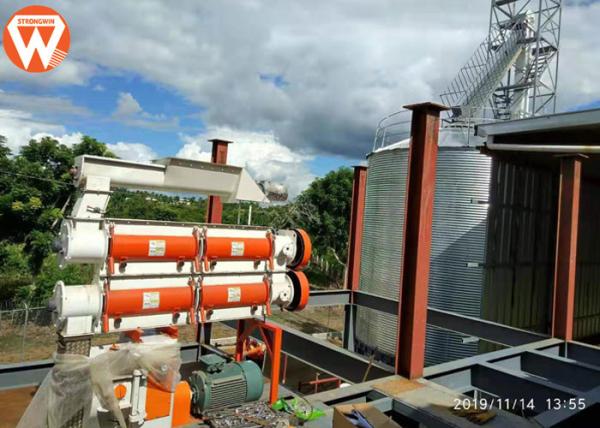

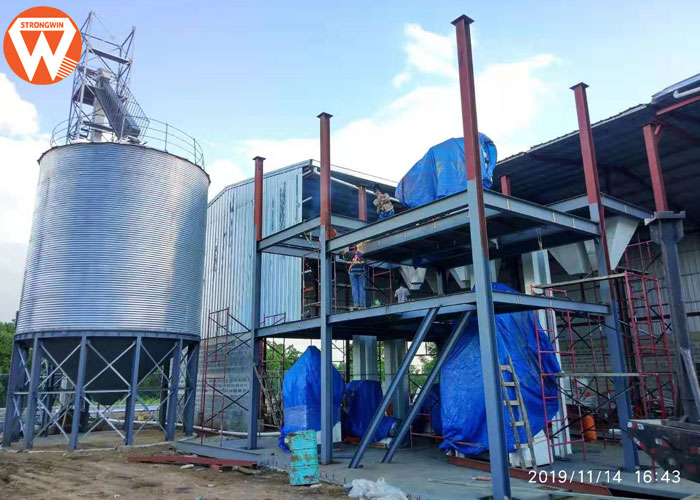

Dominica 5T/H Automatic Cattle Animal Feed Pellet Production Plant
Craft of 5T/H Automatic Cattle Animal Feed Pellet Production Plant
Craft of Automatic Cattle Animal Feed Pellet Production Plant
The full plant including: Raw materials of receiving, cleaning, grinding system, System of batching&mixing, System of pelleting & cooling, System of packing, System of Auxiliary(Air compressor, Steam supply system, Liquid adding machine, Electricity Hoist), Steel Structure, Silo etc.
Detail machine display of Automatic Cattle Animal Feed Pellet Production Plant
Water-drop hammer crusher machine
Fine crushing machine, stable performance, widely used in large and medium-sized feed, food processing enterprises, raw material crushing.
Double shaft paddle mixer
Fast mixing speed, short mixing period, 30-120 seconds / batch; high mixing uniformity, CV ≤ 5%, and no segregation; the mixing process of the machine is mild, the loading range is variable; the full-bottom electric opening and unloading Material, fast discharge, low material residual rate
Ring die feed pellet machine
Imported high-quality bearings and oil seals are used to ensure efficient, stable and low noise operation. The feeder adopts a variable frequency speed regulating motor to ensure the quality of the pellet discharge.
Counter-flow cooler machine
On the Principle of the advanced counter flow cooling, SKLN series counter flow cooler is equipped with a reciprocating grate type discharging device, which is characterized by its smooth material flowing and uniform discharging.
Screener machine
Low breakdown, less maintenance, simple operation, the gearbox adopts non-gear transmission way, dispense with oil lubrication, avoid oil pollution with oil leakage
It changes the tail sliding support into elastic support, avoid deposited material avoid cross contamination
Packing Machine
Technical Parameters of Automatic Cattle Animal Feed Pellet Production Plant
| NO. | Name | Model | Qty | Power(KW) |
| Section1. System of receiving&cleaning & grinding of raw material |
| 11 | Grass crusher | FSP500B-22 | 1 | 22 |
| 111 | Hammer mill | SDH-ZW29C | 1 | 55 |
| 113 | Air blower | 4-30No4A | 1 | 7.5 |
| 114 | Pulse dust collector | TBLMa36 | 1 | |
| 116 | Seal Screw conveyor | TLSB20 | 1 | 2.2 |
| Section2:System batching&mixing |
| 202 | Bucket elevator | TDTG36/28 | 1 | 4 |
| 203 | Rotary Distributor | TFPX-6(250) | 1 | 0.75 |
| 211 | Double shaft blade mixer | SLHY1.0 | 1 | 11 |
| 214 | Scraper conveyor | TGSU20 | 1 | 3 |
| Section3:System of pelleting & cooling |
| 308 | Buffer hopper | | 1 | |
| 309 | Pellet machine | SZLH350 | 1 | 59.5 |
| 312 | Counter flow cooler | SKLN4 | 1 | 1.1 |
| 313 | Pellet crushing | SSLG15×100 | 1 | 5.5 |
| 314 | Air blower | 4-72-5A | 1 | 11 |
| Section4:System of packing |
| 401 | Bucket elevator | TDTG36/18 | 1 | 3 |
| 402 | Rotary screen | SFJH100*2d | 1 | 2.2 |
| 408 | Buffer hopper | 0.5m³ | 1 | |
| 409 | Automatic Packing scale | 10-50KG | 1 | 1.5 |
| 410 | Sealer & conveyor | | 1 | 1.5 |
| Section5:System of Auxiliary(Optional) |
| 501 | Air compressor | | 1 | 15 |
| 502 | Steam supply system | | 1 | |
| 503 | Liquid adding machine | | 1 | 2.2 |
| 504 | Electricity Hoist | | 1 | 2.2 |
